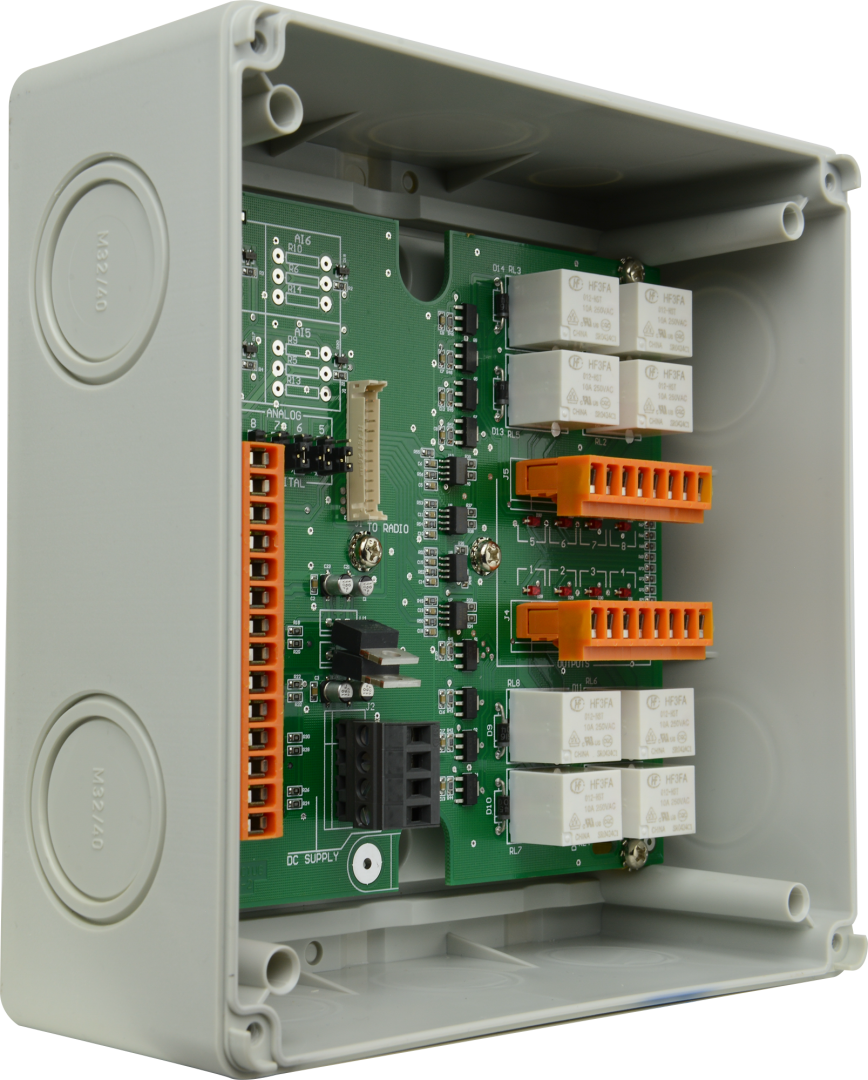

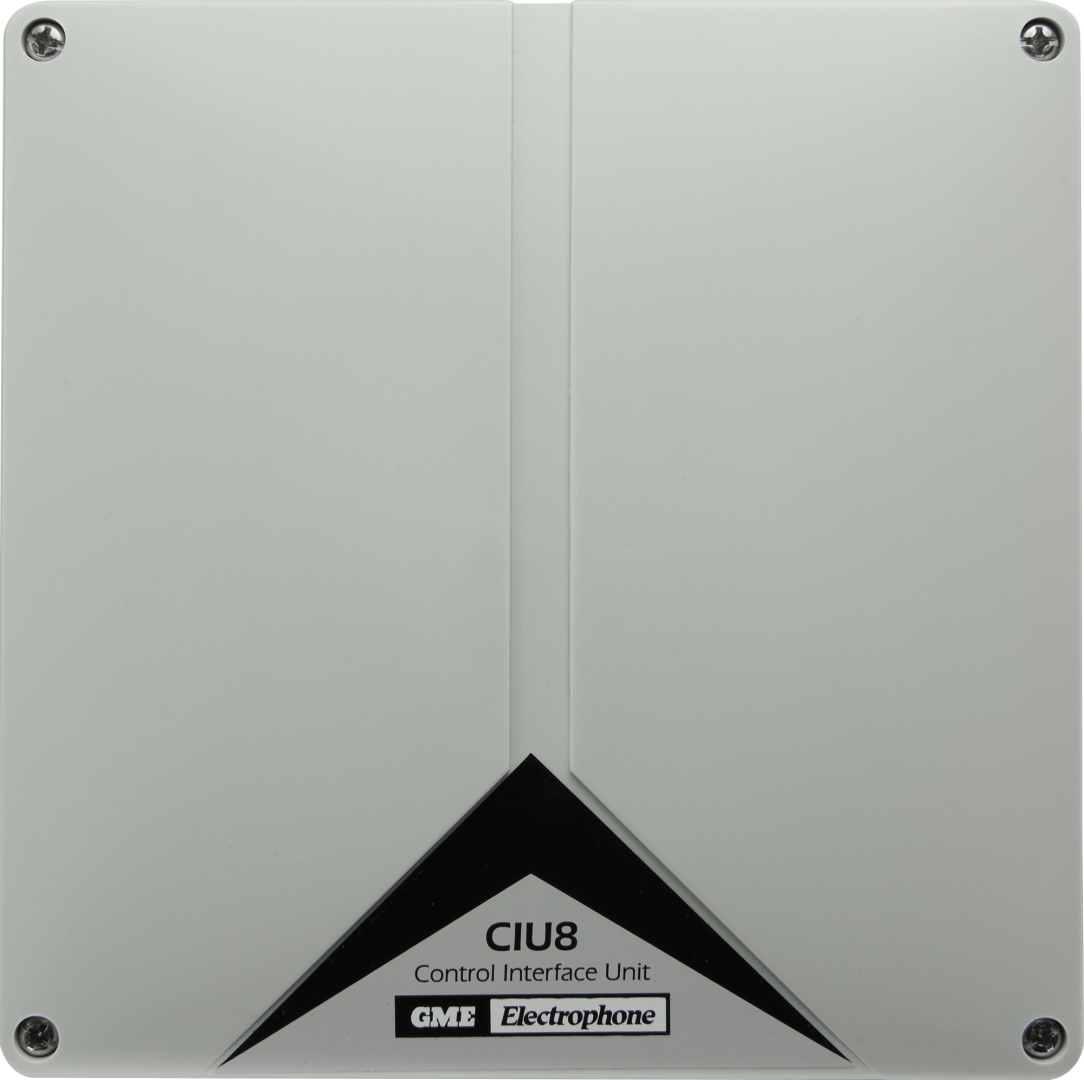

The CIU8 is supplied in a weatherproof box and are designed to connect the TX Series Telemetry radios Radio to a wide range of 3rd party sensors and equipment which are to be controlled and/or monitored.

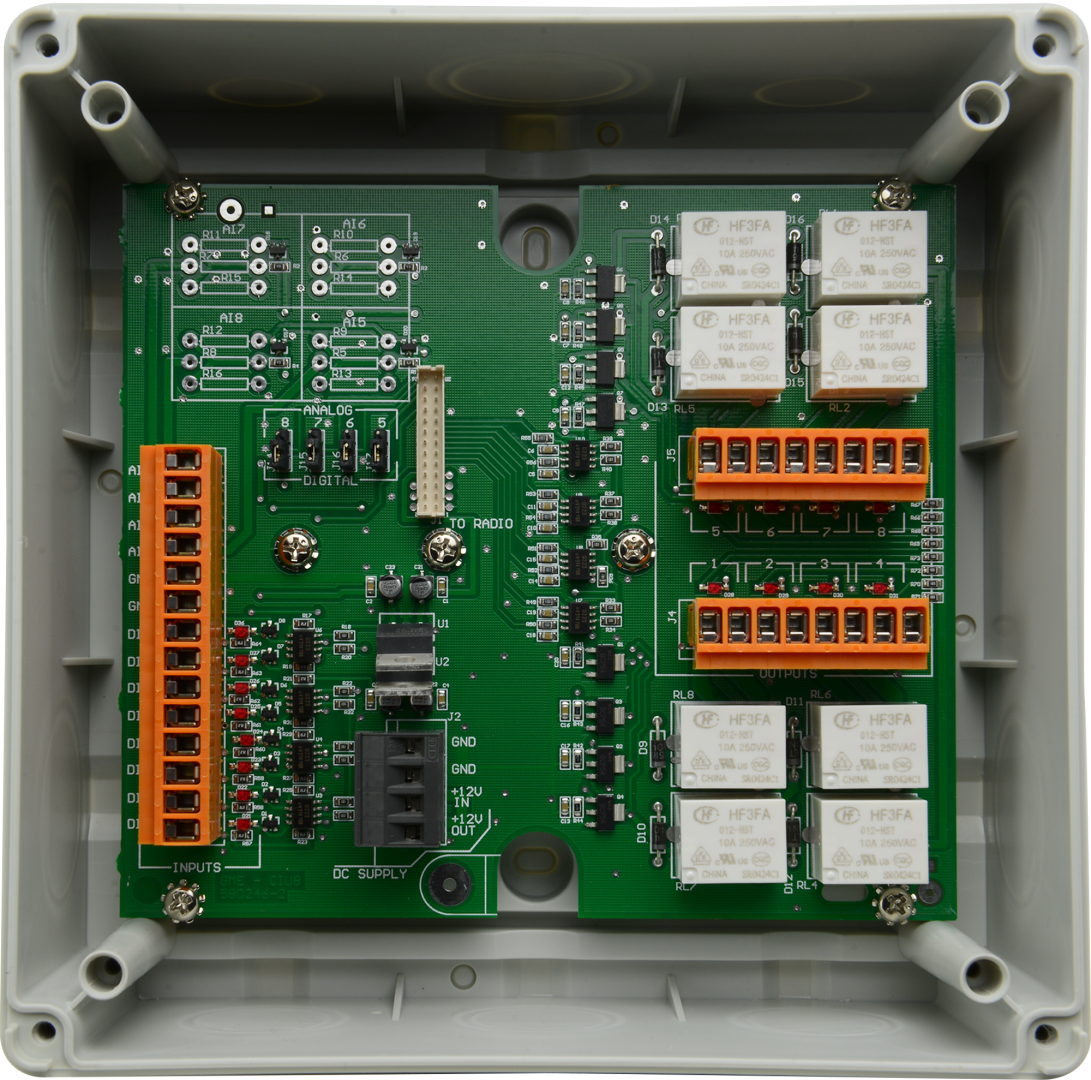

The CIU 8 provides eight (8) digital inputs, or four (4) digital and four (4) analogue inputs, and eight (8) output relays. All external equipment and sensors are connected to the CIU8 via screw terminals blocks.

Supplied with a one (1) LE003 lead and single joiner for replacement installations, for new installations a second LE003 will be required to connect the CIU8 telemetry box to a TX Series radio via the internal J801 port.

The weatherproof box should be installed in a vertical position with the cables extending downward through the exit flange at the bottom.

8 x Outputs 24V 8A DC max
4 x Analogue Inputs / 8 Digital Inputs

Product Details

Key Features

  • Weatherproof box
  • 8 Digital Outputs
  • 8 Digital Inputs and 4 Analogue Inputs
  • Screw Terminal Blocks
  • Supply Voltage 10-15 V DC
  • Supply Current 10 - 130mA
  • Dimensions (mm) 140 x 140 x 80

In the box

  • CIU8
  • LE003 25 pin lead
  • DB25 joiner
