The AE1000MAST is a lightweight 6 meter telescopic field antenna fibre glass carbon composite construction which locks when each section end is turned against the next section end.

The unit has several mounting options and comes as standard with a 600mm ground stake which is hammered into the ground providing a locking cylinder for the mast housing.

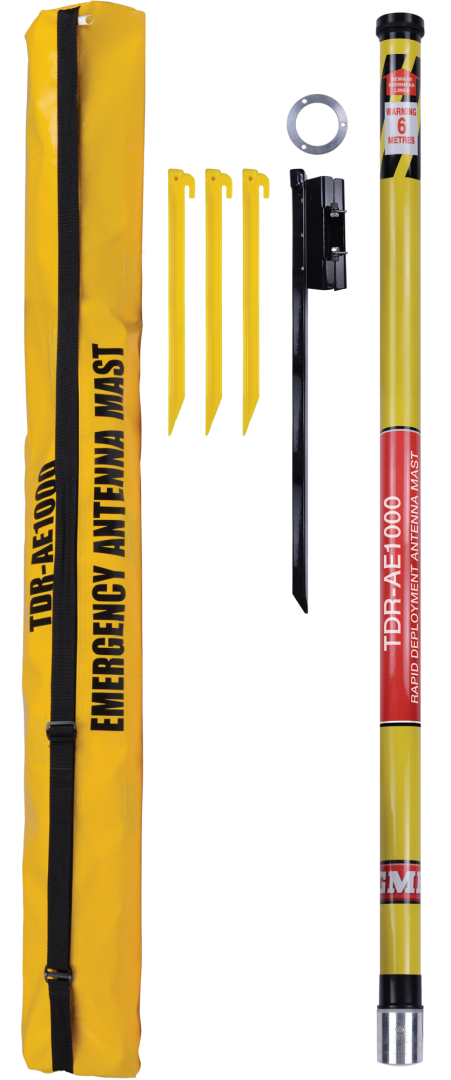

The AE1000MAST comes complete with ground stake, a single guy ring which fits on the second top section, 3 x ground spikes for tying off if required (guy string not included), 10 meters RG58 coaxial cable (“N type” termination) which is fed internally to the top “N” type IP67 sealed connector.

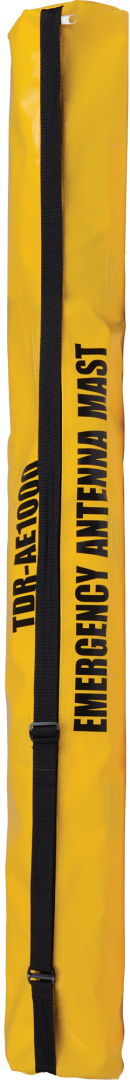

Note: The top whip section is not supplied as standard and must be added according to the operational frequency. The complete unit comes in a high visibility yellow, soft field bag 1200mm long with a convenient shoulder strap.

Telescopic Field Antenna Kit

Product Details

Key Features

  • 6m Fiberglass Carbon Composite Construction
  • High Visibility Yellow Carry Bag

In the box

  • Ground Spikes x 3
  • Guide Ring
  • 10m of RG58 Coaxial Cable (“N type” Termination)
  • 600mm Ground Stake
